| Type | STH221-3 | STH221-5 | |
| Product code | 2024011001 | 2024011002 | |
| Maximum connection poles | Poles | 18 (3*6) | 30 (5*6) |
| Length (mm) | a | 90.5 | 90.5 |
| Height (mm) | b | 28 | 28 |
| Depth from upper-edge of DIN-rail (mm) | c | 22.5 | 22.5 |
| Extra clip part (mm) | d | 8 | 8 |
| Assemble size (mm) | e | 36 | 36 |
| Width (mm) | f | 18 | 30 |
CE, UKCA, RoHS
| Type | STH221-3 | STH221-5 |
| Color | Grey | |
| Insulation material (main housing) | Flame Retardant Polyamide (PA) | |
| Weight (g) | 20 | 30.84 |
| Type | STH221-3 | STH221-5 |
| Color | Grey | |
| Insulation material (main housing) | Flame Retardant Polyamide (PA) | |
| Weight (g) | 20 | 30.84 |
| Type | STH221-3 | STH221-5 | |
| Inner box | Quantity (pieces) | 40 | 24 |
| Dimension (cm) | 23*10*9.5 | 23*10*9.5 | |
| Master carton | Quantity (pieces) | 400 | 240 |
| Dimension (cm) | 51*24*20 | 51*24*20 | |
| Type | STH221-3 | STH221-5 |

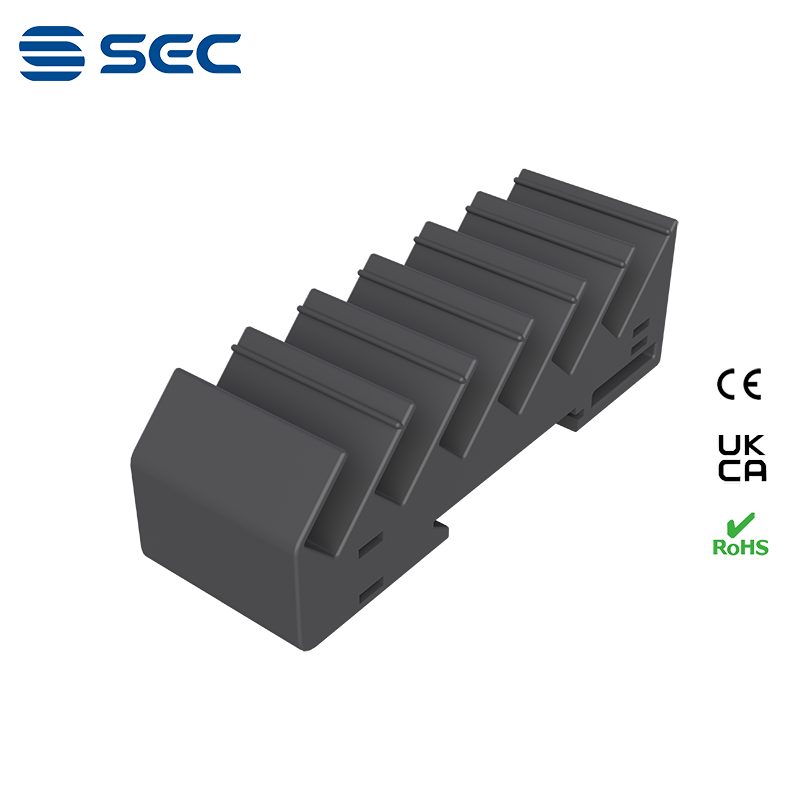

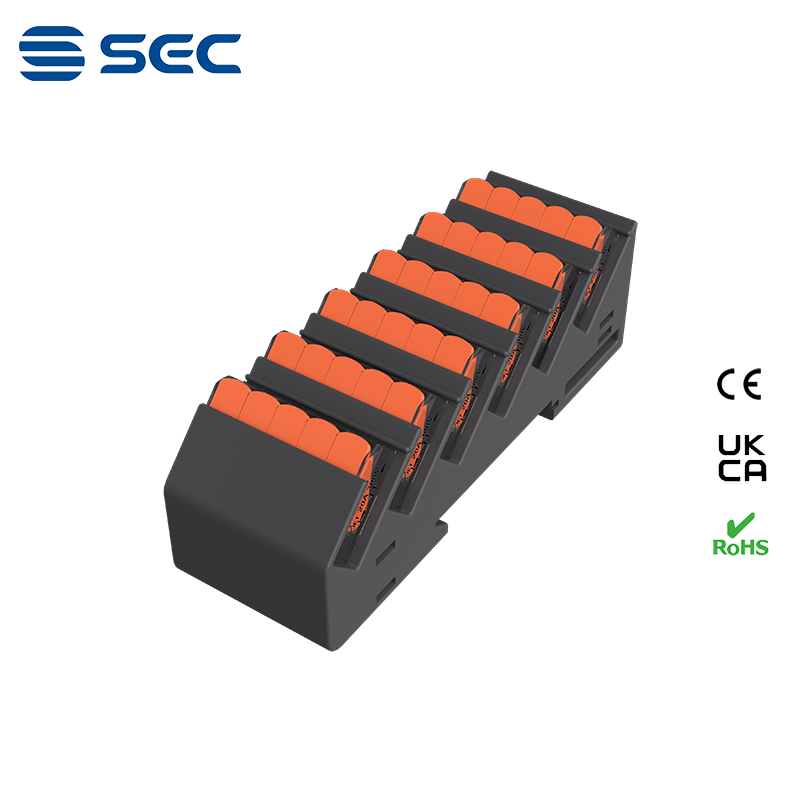

| Total 6 rows of terminal block position. |
|
|
| The protruding line can ensure that the terminal block will not fall off easily. |
|
|

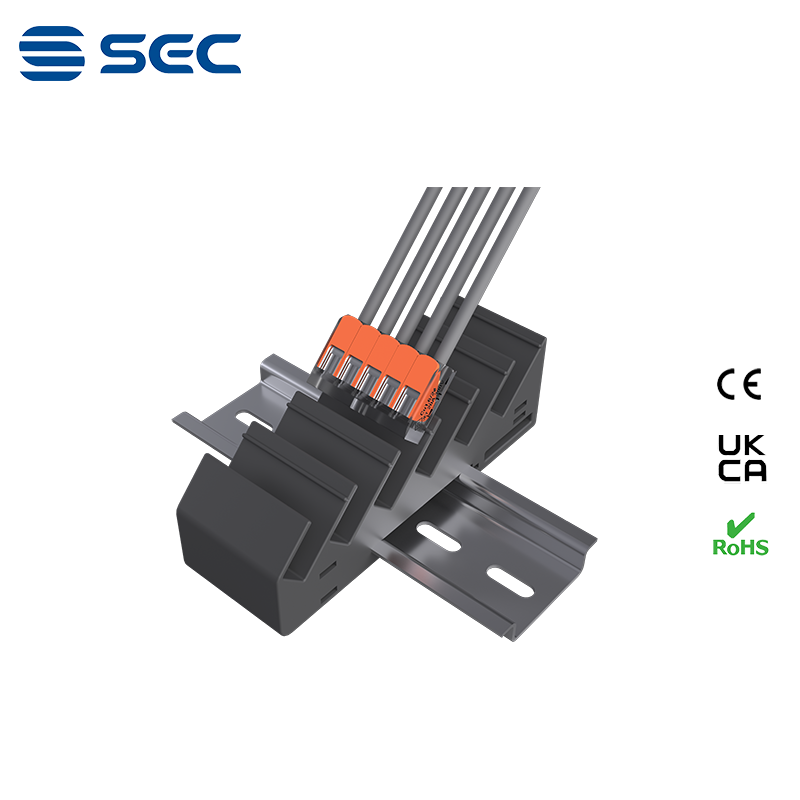

| Easy to inserting connectors into the terminal holder. |
Easy to assemble
|
Easy to assemble
|

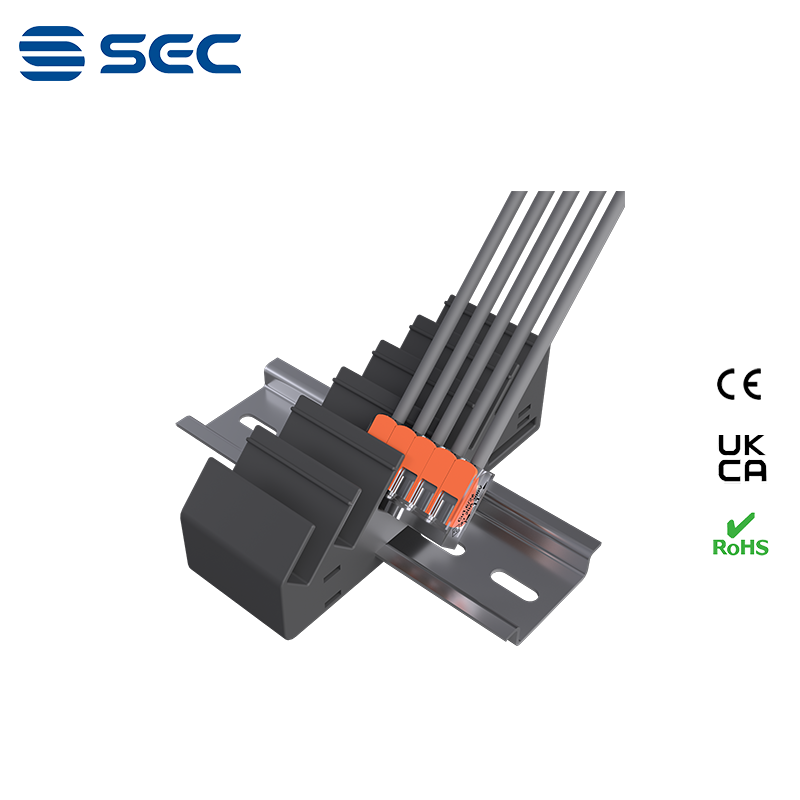

| Easy to take out connectors from the terminal holder. |
Easy to take out
|
Easy to take out
|

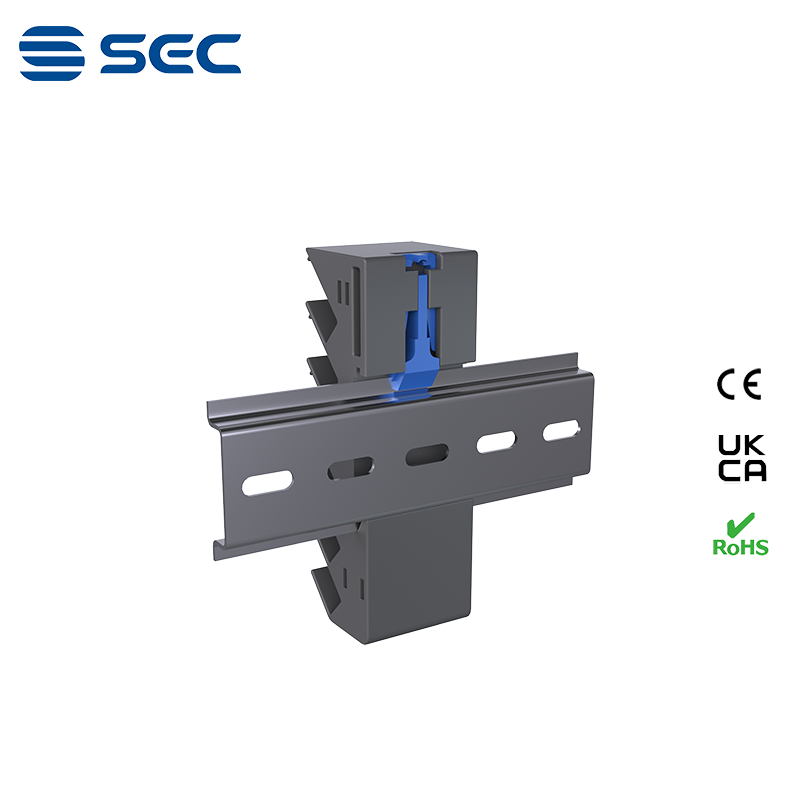

| 35mm width Din rail assemble. |
|
|
