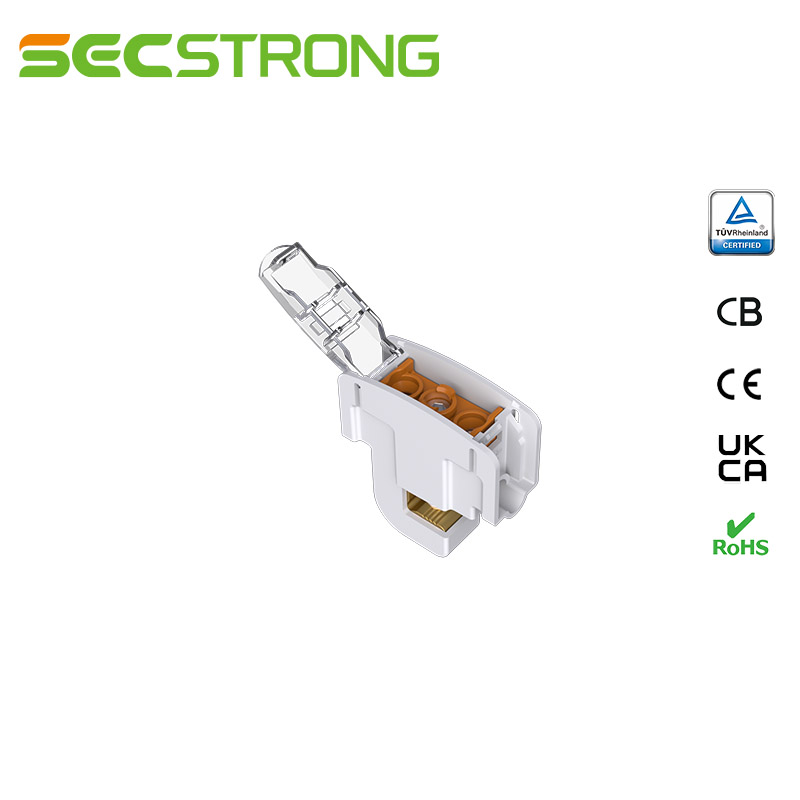

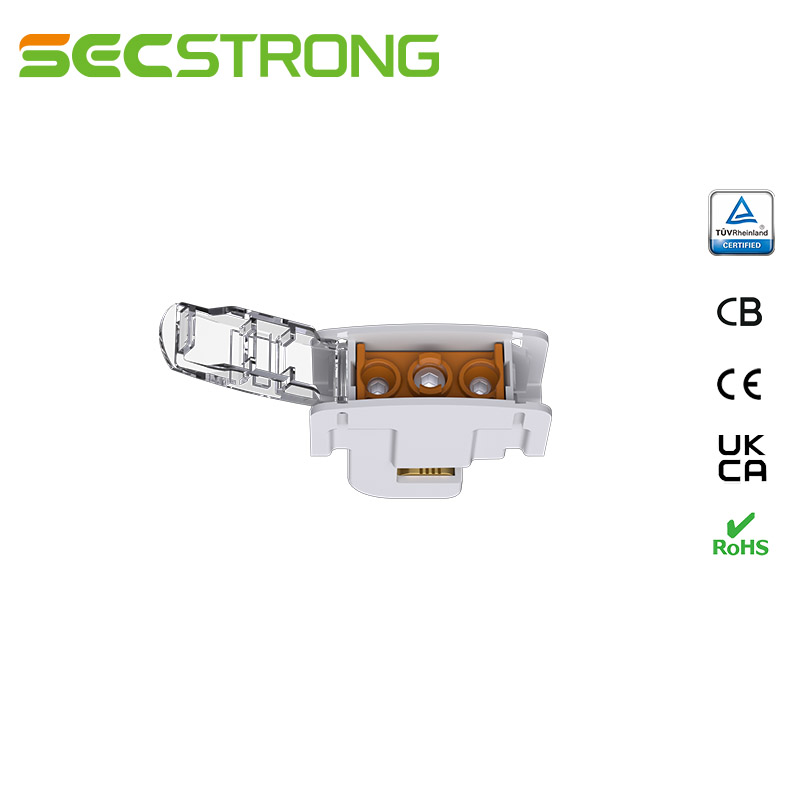

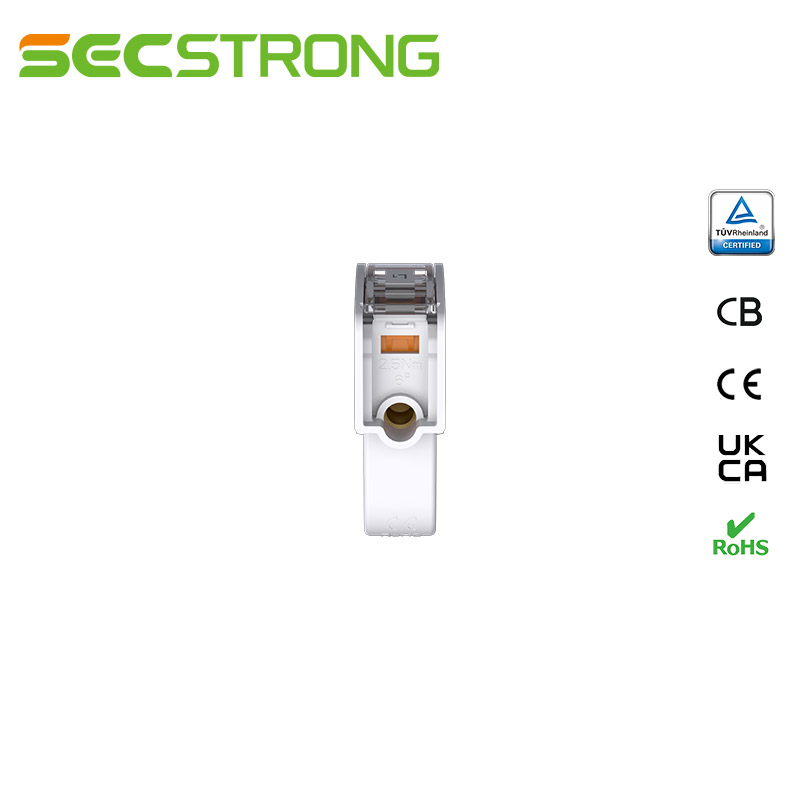

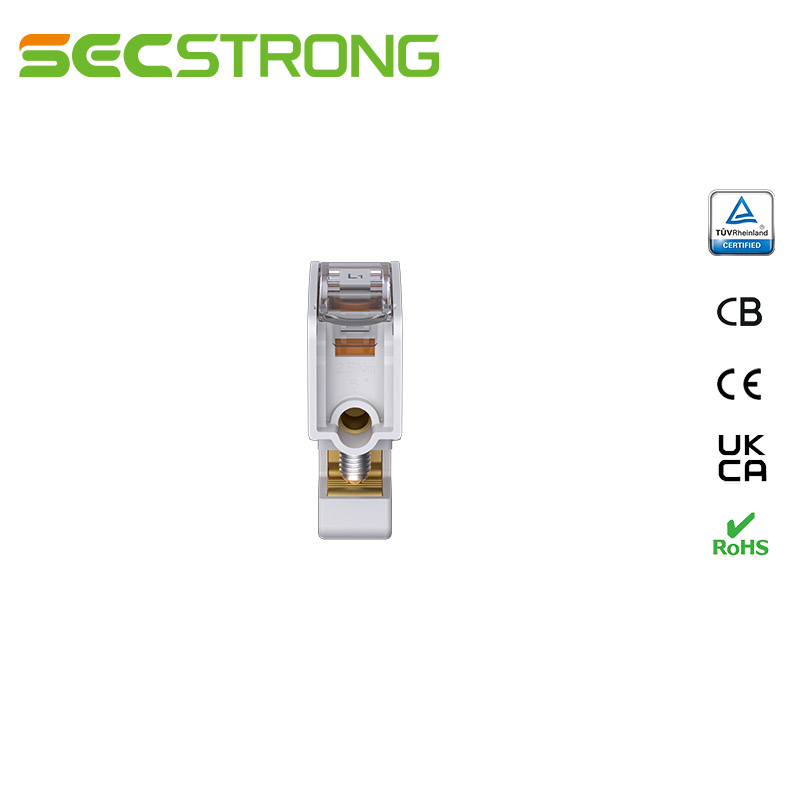

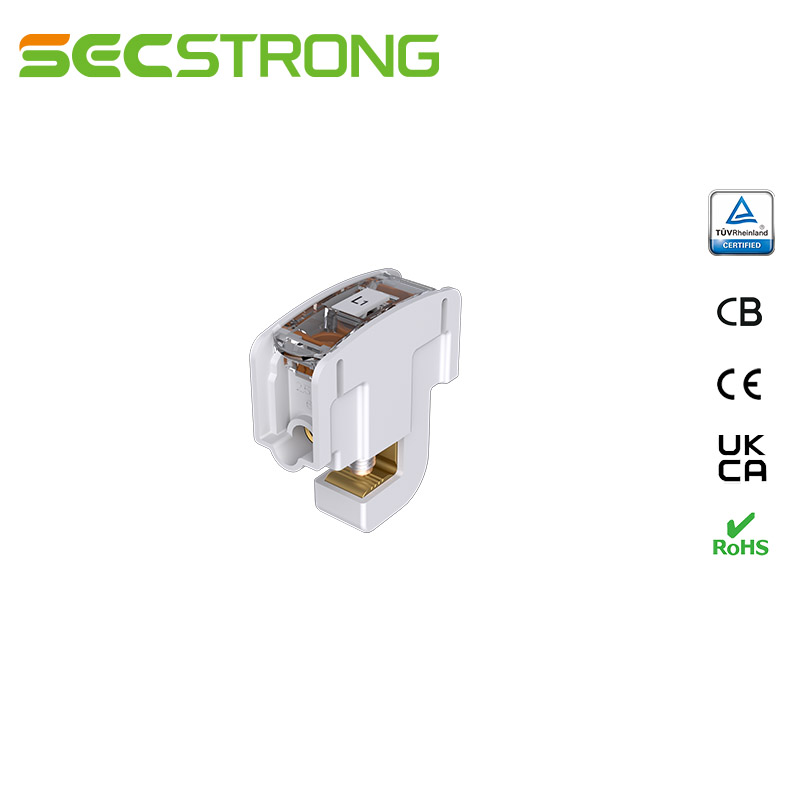

Product type: SCC061
Standard:IEC/EN 60947-7-1
Color: Brown
Incoming: Copper busbar thickness 3/4/5/6/8/10 mm
Outgoing: Wire/Cable size 1.5 mm2 - 6 mm2
Nominal voltage (V): 1000V AC
Nominal current (A): 80A
Certificate: TUV mark, CB, CE,UKCA, RoHS
SCC series copper bar clamp is totally patent designed product by Strong Electric, which offers the best quality, safety installation features, excellent performance in the market. All the product already got TUV mark, CB, CE, UKCA, RoHS certificate.
1. Isolated design which is more safety;
2. Different color of cover which can indicated different line clearly;
3. Product gave one incoming and two outgoing which are more flexiable for application;
4. Realiable housing material polyamide V-0 (PA);
| Housing: | Flame Retardant Polyamide (PA) V-0 (PA Halogen-free); |
| Metal body: | Acid-washed brass; |
| Screws: | Steel hexagonal screws; |
| Cover: | Transparent PC; |
TUV mark, CB, CE, UKCA, RoHS
IEC/EN60947-7-1 for general copper wire/cable;
| SAT | 06 | 1 |
| Product series | Outgoing conductor cross section area | Middle cover's color |
| 06 mm² | 1 Brown (L1) | |
| 16 mm² | 2 Black(L2) | |
| 35 mm² | 3 Grey(L3) | |
| 50 mm² | 4 Blue(Neutral) | |
| 70 mm² | 5 Yellow/Green(PE) |
| Product type: | SCC061 SCC062 SCC063 SCC06N SCC06E |
| Standards: | IEC/EN 60947-7-1 |
| Conductor cross-section Cu (mm2): | 1.5-6 mm² |
| Nominal voltage Cu (V): | 1000 V |
| Nominal current CU (A): | 80 A |
Assemble
| Incoming 1*Copper bar | Copper bar maximum thickness 3/4/5/6/8/10 mm. | ||
| Clamping screw for busbar connection: | |||
| Hexagonal screw | M6 * 18 mm | ||
| Tightening torque | 3 Nm | ||
 Outgoing2*6mm² cable/wire | 1.5 – 6 mm², round conductor Cu (solid wire and multi wire) | ||
| 1.5 – 4 mm², stranded wire with ferrule | |||
| Hexagonal screw | M5 * 8 mm | ||
| Tightening torque | 2.5 Nm | ||
| Stripping length | 12 mm | ||

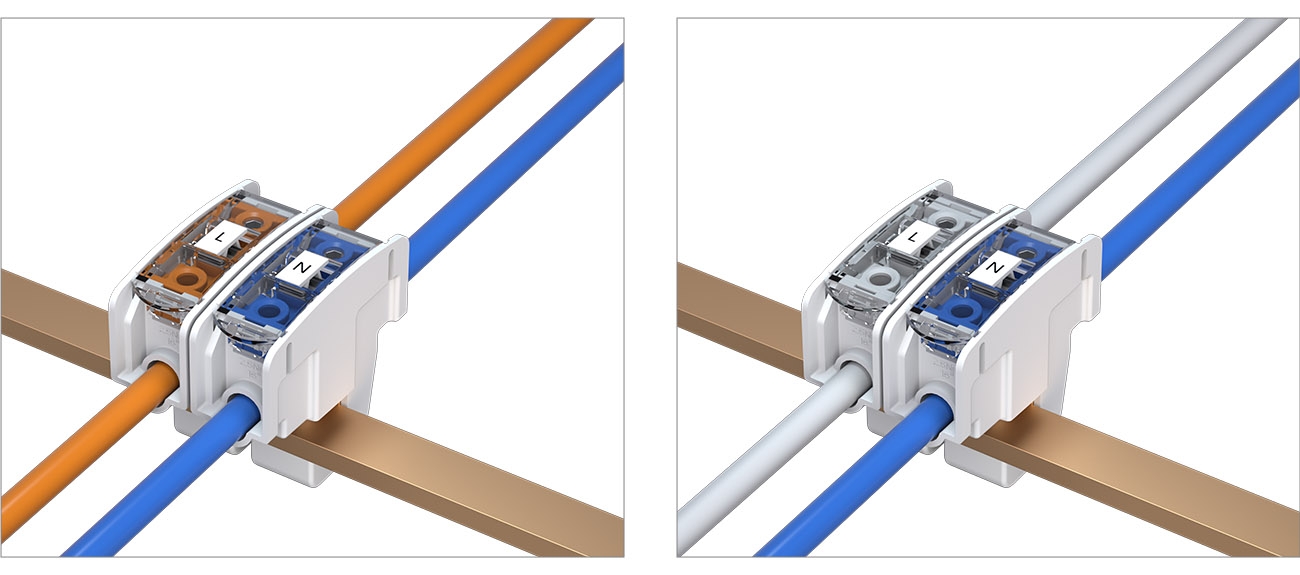

| Application | Color | Mark | Indication | |||
| New regulation | Old regulation | |||||
| AC-Single Phase | Brown | Grey | L | Single Phase Line | ||
| Blue | Blue | N | Netural | |||

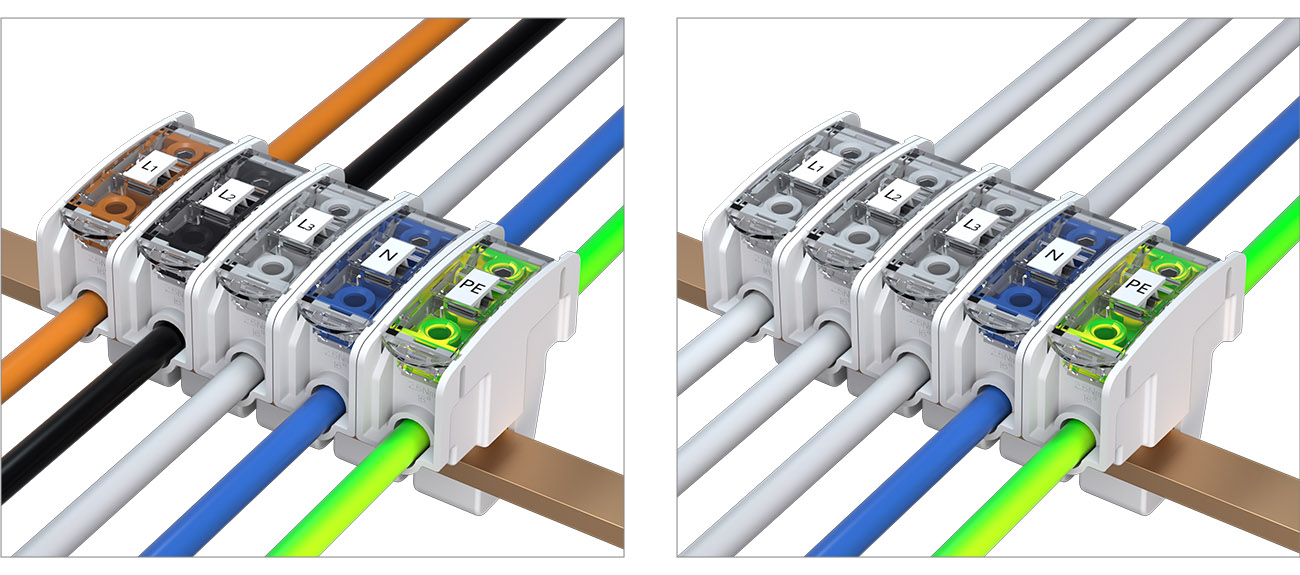

| Application | Color | Mark | Indication | |||
| New regulation | Old regulation | |||||
| AC-Three Phase | Brown | Grey | L1 | Three Phase Line 1 | ||
| Black | Grey | L2 | Three Phase Line 2 | |||
| Grey | Grey | L3 | Three Phase Line 3 | |||
| Blue | Blue | N | Netural | |||
| Yellow/Green | Yellow/Green | PE | Protective Eath or Ground | |||
1. Switchgear and Controlgear
2. Industrial Automation
3. Solar System
4. Wind Power
5. Mechanical Manufacture
6. Construction
